Core Precision Grinding Services: Surface Grinding and Cylindrical Grinding
In precision machining systems, grinding is the ultimate process for ensuring that parts achieve their final critical dimensions, geometric accuracy, and superior surface quality. Our factory’s surface grinding and cylindrical grinding services are specifically designed to meet your most stringent requirements for part flatness, roundness, and surface finish.
Services
Precision Grinding Services

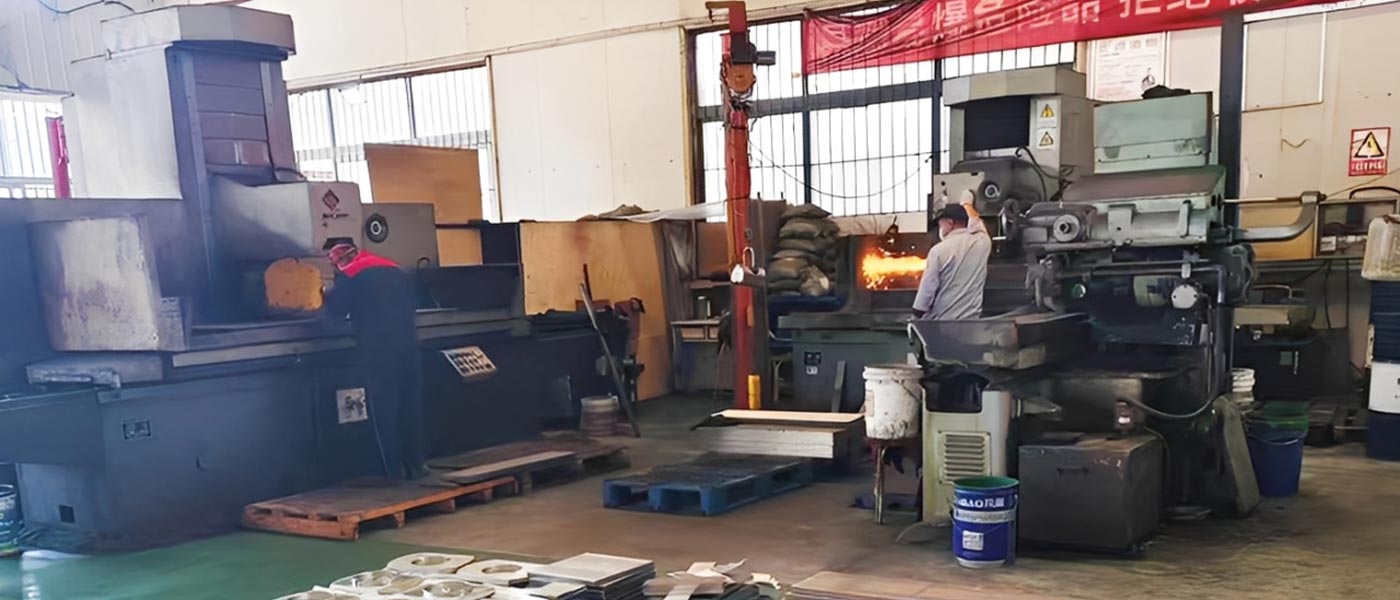

Surface Grinding Machine: Guaranteeing ultimate flatness and smoothness
Our surface grinding machines specialize in creating and grinding high-precision flat surfaces, stepped surfaces, and side surfaces on a variety of workpieces.
Core Technological Advantages
Ultra-high flatness and parallelism: We can consistently guarantee excellent flatness and parallelism; for example, parallelism accuracy can reach 0.01/300mm, ensuring consistency in high-volume production of parts.
Exceptional surface finish: Achievable surface roughness is as low as Ra 0.8μm, or even better, providing a near-mirror finish for parts, reducing friction, and improving wear resistance and sealing performance.
Specialization in thin-part machining: For easily deformed thin workpieces, we utilize special tooling processes such as elastic pads to effectively control machining deformation and achieve perfectly flat surfaces.
Exceptional surface finish: Achievable surface roughness is as low as Ra 0.8μm, or even better, providing a near-mirror finish for parts, reducing friction, and improving wear resistance and sealing performance.
Specialization in thin-part machining: For easily deformed thin workpieces, we utilize special tooling processes such as elastic pads to effectively control machining deformation and achieve perfectly flat surfaces.
Main Processing Scope And Applications
Processing Type: Precision grinding of flat surfaces, stepped surfaces, and right-angle surfaces of various materials.
Typical Parts: Mold parting surfaces, machine guide rails, sealing surfaces, precision fixtures, bearing end caps, etc.
Material Adaptability: Capable of efficiently processing various metal materials such as tool steel, stainless steel, hardened steel, cast iron, and aluminum alloys.
Typical Parts: Mold parting surfaces, machine guide rails, sealing surfaces, precision fixtures, bearing end caps, etc.
Material Adaptability: Capable of efficiently processing various metal materials such as tool steel, stainless steel, hardened steel, cast iron, and aluminum alloys.
Value To The Customer
When your parts require extremely high precision in flatness, parallelism, or surface roughness, our surface grinding service is the ideal choice. It is often used as the final finishing process for critical reference surfaces, directly impacting the assembly accuracy and performance of the entire machine.

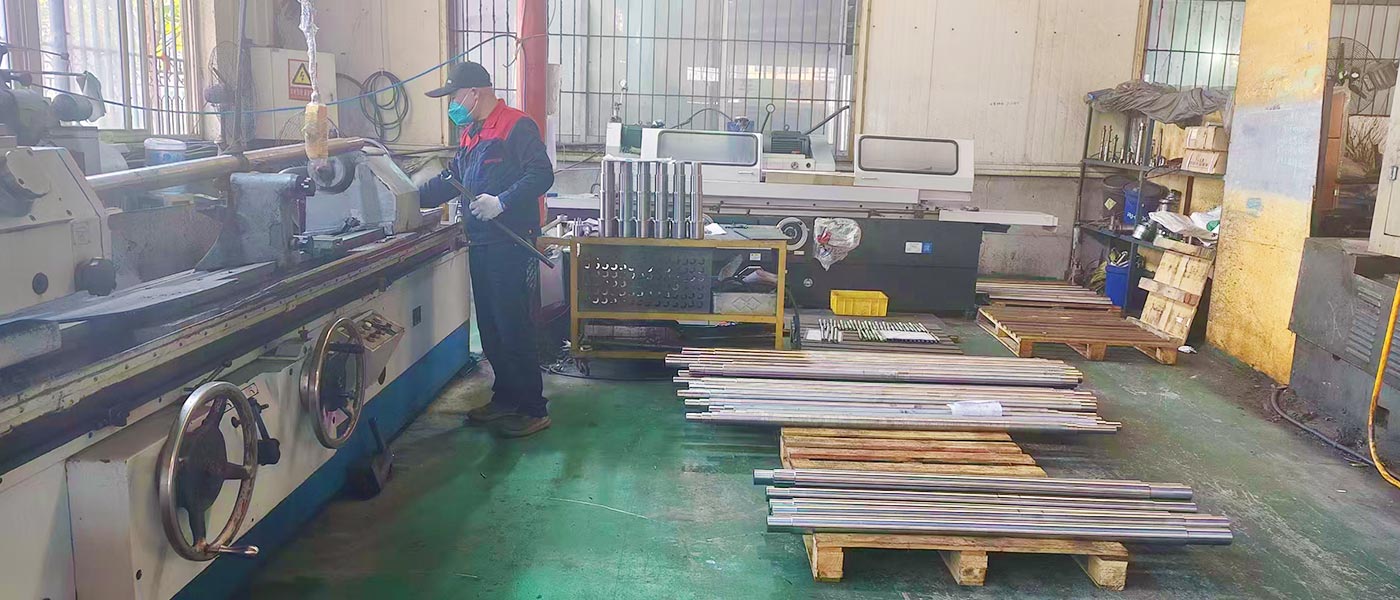

External Cylindrical Grinding Machine: The Solution For Precision Cylindrical And Conical Grinding
Our external cylindrical grinding machines specialize in high-precision grinding of the external surfaces of cylindrical, conical, and other rotational parts.
Core Technological Advantages
Micron-level geometric accuracy: Excellent performance in key geometric accuracies such as roundness and cylindricity, with roundness accuracy reaching 0.003mm, ensuring smooth operation and high concentricity of shaft parts.
Precise dimensional control: Capable of achieving strict dimensional tolerances, with outer and inner diameter grinding tolerances controllable within 0.005mm, and even reaching an extremely high precision of 0.002mm.
Multifunctionality: In addition to standard external cylindrical and end face grinding, universal cylindrical grinding machines can also grind internal holes, internal tapered surfaces, etc., offering greater functionality.
Precise dimensional control: Capable of achieving strict dimensional tolerances, with outer and inner diameter grinding tolerances controllable within 0.005mm, and even reaching an extremely high precision of 0.002mm.
Multifunctionality: In addition to standard external cylindrical and end face grinding, universal cylindrical grinding machines can also grind internal holes, internal tapered surfaces, etc., offering greater functionality.
Main Processing Scope And Applications
Processing types: External cylindrical surfaces, external conical surfaces, stepped shafts, shaft shoulder end faces, etc.
Typical parts: Drive shafts, spindles, rolling mill rolls, piston rods, precision mandrels, etc.
Industry applications: Widely used in critical fields such as automotive (e.g., engine crankshafts), aerospace (e.g., engine rotors), and mechanical manufacturing (e.g., guide rails, lead screws).
Typical parts: Drive shafts, spindles, rolling mill rolls, piston rods, precision mandrels, etc.
Industry applications: Widely used in critical fields such as automotive (e.g., engine crankshafts), aerospace (e.g., engine rotors), and mechanical manufacturing (e.g., guide rails, lead screws).
Value To The Customer
When your shafts, bushings, and roller parts require extremely high dimensional accuracy, geometric accuracy (such as roundness and cylindricity), and superior surface quality, external cylindrical grinding is an indispensable process. It significantly improves the rotational accuracy, service life, and assembly reliability of the parts.
Quality & Precision
Quality Assurance & Professional Team
Precision Inspection
Employ micrometers, dial gauges, and surface testers for full-process inspection.
Strict Tolerance Control
Ensure dimensions, geometric accuracy, and surface finish meet drawing specifications.
End-to-End Quality Assurance
Every part undergoes rigorous checks to guarantee reliability and consistency.
Industry Applications
High-End Industry Strict Standards
Automobiles And Parts
High-precision structural and assembly parts, ensuring vehicle performance.
Construction Machinery
High-strength custom parts, meeting complex machinery needs.
Industrial Machinery
High-strength custom parts, meeting complex machinery needs.
Automation Equipment
Precision motion and functional parts, ensuring equipment stability.
Medical Devices
High-precision parts, compliant with medical device standards.
Aerospace & Defense
Critical parts manufacturing with strict tolerances and reliability.
Process
Service Workflow
Requirements
Clients provide drawings or samples, and we confirm machining requirements, materials, and batch size.
Quotation
Engineering team evaluates feasibility, optimizes the process, and provides a quotation.
Production
After prototype approval, mass production is scheduled with strict process and quality control.
Delivery
Each batch is inspected to meet specifications and delivered safely on time.
Requirements
Clients provide drawings or samples, and we confirm machining requirements, materials, and batch size.
Quotation
Engineering team evaluates feasibility, optimizes the process, and provides a quotation.
Production
After prototype approval, mass production is scheduled with strict process and quality control.
Delivery
Each batch is inspected to meet specifications and delivered safely on time.
FAQ
What types of parts can be machined?
We can machine a wide range of high-precision CNC parts for automotive, aerospace, medical devices, industrial machinery, and automation equipment, including complex geometries and custom non-standard parts.
What is the machining accuracy?
We can achieve high-precision machining with ±0.005mm tolerance and ensure consistent quality through our strict quality control system.
Can you provide small-batch and prototype manufacturing services?
Yes, we support small-batch production and prototype machining, with flexible scheduling to meet urgent client requirements.
Do you offer customized processing solutions?
Yes, we provide customized solutions with one-on-one technical support, from design review and process optimization to final machining.
How long does delivery usually take?
Delivery time depends on part complexity and quantity, typically within 1-6 weeks. We provide a detailed schedule upon order confirmation.
What certifications are available for quality management systems?
We hold ISO 9001, ISO 14001, and ISO 45001 certifications, strictly following international quality, environmental, and safety standards.
How long does delivery usually take?
Delivery time depends on part complexity and quantity, typically within 1-6 weeks. We provide a detailed schedule upon order confirmation.
