CNC Machining Tolerances: What You Should Specify and Why

If you work with CNC machining, sooner or later you face one critical question: How tight should your tolerances actually be?

You might assume tighter CNC machining tolerances always mean better quality. In reality, CNC machining tolerance selection is a strategic engineering and cost decision. When you over-specify tolerances, you may increase manufacturing cost, extend lead time, and reduce supplier options. When you under-specify, your parts may fail, wear prematurely, or create assembly problems.

Understanding CNC machining tolerances is not just about dimensional accuracy. It is about function, manufacturability, and cost balance. When you learn how to properly specify tolerances, you gain control over product reliability and production efficiency.

This guide walks you through how tolerances work, how to specify them correctly, and how you can avoid the most common mistakes engineers and buyers make.

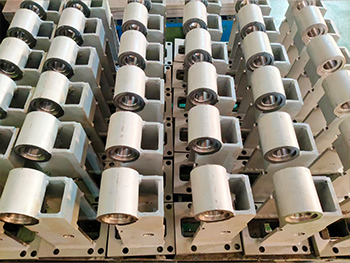

What CNC Machining Tolerance Actually Means

In CNC machining, tolerance is the allowable variation from a nominal dimension. No machining process can produce perfect dimensions, so engineers define acceptable ranges instead of exact values.

For example:

• Nominal dimension: 50.000 mm
• Tolerance: ±0.02 mm
• Acceptable range: 49.98–50.02 mm

Tolerance directly affects part function and manufacturing difficulty. Tighter tolerances typically require slower machining speeds, additional finishing operations, and more intensive inspection.

Tighter tolerances can increase cost because they require advanced machines, specialized tooling, longer cycle times, and more detailed inspection procedures. In many cases, relaxing tolerances slightly can significantly reduce manufacturing cost without affecting performance

Typical CNC Machining Tolerance Ranges

Understanding industry baseline values helps you decide whether your design is realistic.

Standard Machining Capability Overview

Process	Typical Standard Tolerance
CNC Milling	±0.005″ (0.13 mm)
CNC Turning	±0.005″ (0.13 mm)
Drilling	±0.010″ (0.25 mm)
Wire EDM	±0.0002″ (0.005 mm)
Surface Grinding	±0.0001″ (0.0025 mm)

These values represent typical achievable ranges for general production. Ultra-tight tolerances usually require secondary processes like grinding or EDM.

Most standard CNC machining operations can reliably hold around ±0.13 mm under normal conditions, which is sufficient for most industrial components.

How Tolerance Standards Are Defined Globally

International standards help ensure compatibility across manufacturing supply chains.

ISO Tolerance Grade System (IT Grades)

Lower IT numbers mean tighter tolerances.

IT Grade	Typical Use
IT6 – IT7	High precision components
IT8 – IT9	General machinery
IT10 – IT11	Press fit and rough machining
IT12+	Structural or coarse parts

For example, for a 50 mm diameter feature:

• IT6 ≈ ±0.019 mm
• IT8 ≈ ±0.039 mm
• IT11 ≈ ±0.16 mm

These tolerance zones help engineers select realistic machining targets based on function and manufacturing method.

Why Over-Tolerancing Is One of the Most Expensive Mistakes

Many engineers assume tighter tolerances always improve product quality. In reality, this can damage project economics.

Cost Impact of Tight Tolerances

When tolerances tighten:

• Machining speed decreases
• Tool wear increases
• Scrap rate increases
• Inspection requirements increase

Even small tolerance relaxations can reduce manufacturing costs significantly.

Real Example: Housing Component Redesign

Original Design

• General tolerance: ±0.01 mm
• Machining process: 5-axis milling
• Scrap rate: 12%

Optimized Design

• Functional surfaces: ±0.01 mm
• Non-critical surfaces: ±0.05 mm
• Scrap rate reduced to 3%
• Cost reduced by ~18%

The lesson: You only need tight tolerances where function requires it.

Functional Tolerance Design: Think Assembly First

Tolerance selection should start with functional requirements.

Key Questions You Should Ask

• Does this dimension affect assembly?
• Does it affect sealing or fluid performance?
• Does it affect wear or fatigue life?
• Is it purely cosmetic?

Tolerance analysis ensures assemblies still function correctly even when each part varies slightly. Manufacturing cost generally increases as tolerances become tighter, so engineers must balance performance with production feasibility.

Types of Tolerances You Will Specify

Bilateral Tolerance

Symmetrical variation around nominal value.
Example: ±0.02 mm

Unilateral Tolerance

Variation allowed only in one direction.
Example: +0.00 / −0.05 mm

Limit Tolerance

Upper and lower limits defined directly.

GD&T (Geometric Tolerancing)

Controls form, orientation, and position, not just size.

GD&T allows precise functional control, especially in complex assemblies.

Case Study: Shaft and Bearing Fit Design

You are designing a rotating shaft assembly.

Requirement

• Smooth rotation
• Minimal vibration
• Long bearing life

Solution Using Standard Fits

Example:

• Hole: H7
• Shaft: g6

This combination creates controlled clearance for rotating applications.

Using standardized fit systems ensures predictable assembly performance and manufacturability.

Material Choice Changes Tolerance Capability

Not all materials behave the same during machining.

Material vs Typical Tolerance Capability

Material	Typical Machining Stability
Aluminum	Very stable, tight tolerances achievable
Stainless Steel	Stable but tool wear increases
Titanium	Hard to machine, tolerances often wider
Plastics	Thermal expansion reduces precision

Plastic parts often require looser tolerances due to heat expansion and flexibility.

Process Selection vs Tolerance Capability

High-Precision Process Comparison

Process	Best Use
CNC Milling	General precision
Turning	Cylindrical parts
Grinding	Ultra-tight tolerances
EDM	Complex precision shapes

Grinding and EDM can achieve micron-level tolerances, far beyond typical milling or turning.

How You Should Specify Tolerances on Drawings

A complete tolerance specification should include:

• Nominal dimension
• Tolerance value
• Surface finish requirement
• GD&T symbols (if needed)
• Fit type (clearance / interference / transition)

Including tolerance class standards prevents misinterpretation during manufacturing.

Real-World Case: Medical Fluid Control Component

Challenge

A fluid control valve is required:

• Leak prevention
• Smooth sliding movement

Solution

• Bore tolerance: ±0.005 mm
• External housing tolerance: ±0.03 mm

Result:

• Zero leakage
• Reduced machining time
• Lower production cost

This demonstrates selective tolerance optimization.

Data-Driven Tolerance Optimization Is Growing

Modern manufacturing increasingly uses data models to predict cost impact and machining difficulty based on geometry and tolerance requirements.

Machine learning and advanced simulation are now being applied to machining cost prediction and tolerance optimization in CAD design stages.

How to Decide When You Need Ultra-Tight Tolerance

You likely need tight CNC machining tolerances when:

• Parts are sealing fluid or gas
• High-speed rotation is involved
• Optical or medical surfaces exist
• Precision alignment is critical

Otherwise, standard machining tolerances are usually sufficient.

Practical Tolerance Selection Workflow You Can Use

Step 1: Define Function

Identify critical performance surfaces.

Step 2: Select Fit Type

Choose clearance, transition, or interference.

Step 3: Choose Manufacturing Process

Match process capability to tolerance target.

Step 4: Validate Cost

Review machining and inspection cost impact.

Step 5: Optimize

Relax tolerances on non-critical surfaces.

The Future: Physics-Based Tolerance Allocation

New engineering approaches use simulation and optimization models to define tolerances based on system performance instead of guesswork.

These models allow engineers to determine the largest allowable tolerances while maintaining system performance limits.

Common Tolerance Mistakes You Should Avoid

1. Applying Tight Tolerances Everywhere

Always apply selectively.

2. Ignoring Material Behavior

Thermal expansion matters.

3. Forgetting Inspection Capability

Measurement must match tolerance.

4. Not Considering Production Volume

High volume requires robust tolerance design.

CNC Tolerance vs Accuracy vs Precision

• Tolerance = Allowed dimensional variation
• Accuracy = Closeness to true dimension
• Precision = Repeatability of results

All three must work together for reliable production.

Conclusion

If you want to improve product quality, reduce cost, and accelerate production timelines, CNC machining tolerance design is one of the most powerful tools you control.

You should not think of CNC machining tolerances as simple numbers. Instead, treat them as a strategic engineering decision that connects product performance, manufacturability, and supply chain efficiency.

When you specify tolerances intelligently, you are not just designing parts—you are designing production success.
