Essential Machined Parts Guide: Materials, Tolerances and Quality

Introduction

Machined parts are used wherever a component must combine controlled geometry, material performance and repeatable dimensional accuracy. They can range from simple shafts and mounting plates to complex housings, precision interfaces, multi-axis components and assemblies that require several machining and finishing operations.

Although CNC equipment has significantly expanded what manufacturers can produce, a reliable machined part is not created by machine capability alone. Material selection, design geometry, tolerance strategy, cutting-tool access, workholding, machining sequence, thermal behavior, surface requirements and inspection all influence the finished component.

This is an important distinction for designers and engineers. A CAD model may define perfect geometry, but manufacturing must reproduce that geometry by physically removing material from a real workpiece. Cutting tools deflect, materials respond differently to machining forces, fixtures restrict access and each additional setup creates another opportunity for dimensional relationships to change.

For this reason, successful machined parts are usually developed by considering design and manufacturing together. Instead of asking only whether a feature can be machined, engineers should consider whether it can be produced consistently, inspected reliably and integrated into the complete manufacturing sequence.

This guide examines the factors that influence machined parts from initial material selection through CNC machining, tolerances, surface quality and final inspection.

What Are Machined Parts?

Machined parts are components produced by removing material from a workpiece until the required dimensions and geometry are achieved. The broader process of machining includes controlled material-removal methods such as turning, milling, drilling, boring and related manufacturing operations.

The starting workpiece can take many forms. Some machined parts begin as bar or plate material, while others are produced from castings, forgings or preformed blanks that already resemble the final component.

The amount of machining therefore depends on the manufacturing route.

A component produced directly from solid material may require extensive roughing before its final surfaces can be created. A cast housing may require machining only on bearing bores, mounting faces and threaded interfaces while most of its external geometry remains as-cast.

Modern CNC machining allows programmed machine motion to create repeatable features from engineering materials. However, the term machined parts describes the finished components rather than one particular type of equipment.

A machined part may involve CNC milling, CNC turning, grinding or several processes combined into a single route.

The engineering objective is to determine which operations should establish each important feature and how those operations should work together to create the final component.

Why Machined Parts Require More Than Accurate CNC Programming

Programming defines where the cutting tool is expected to move, but it cannot eliminate the physical conditions of machining.

When a cutting tool enters material, forces are generated between the tool and workpiece. Those forces can cause slight deflection in the tool, workpiece or fixture. The amount of movement depends on material, tool dimensions, workpiece rigidity and cutting conditions.

Tool wear introduces another source of variation. A new cutting edge does not behave exactly like the same tool after repeated cutting operations. Without appropriate process control, gradual wear can influence dimensions and surface condition.

Temperature also matters. Cutting generates heat, and the temperature of the tool, workpiece and machine can change during production. For some general machining operations the effect may be limited, while precision machined parts can be more sensitive to these changes.

Workholding adds another physical constraint.

The workpiece must be clamped securely enough to resist machining forces, but the fixture must also allow cutting tools to reach the required geometry. Thin or flexible components can even change shape under excessive clamping force.

Accurate machining therefore depends on a controlled relationship between digital programming and physical manufacturing conditions.

The strongest process is one that anticipates variation instead of assuming the CNC program alone will prevent it.

How Material Selection Influences Machined Parts

Material should be selected according to both final performance and manufacturing behavior.

Different materials respond differently to cutting forces, temperature, tool geometry and workholding. A design that machines predictably in one aluminum alloy may require a different strategy when produced from stainless steel, alloy steel or an engineering plastic.

Strength is only one consideration. Designers may also need to evaluate stiffness, weight, corrosion resistance, wear performance, thermal characteristics and environmental conditions.

Machinability should then be considered alongside these functional requirements.

Materials that are harder or more abrasive can increase tool wear. Materials with lower rigidity may require greater care when thin sections are machined. Some materials produce chips that are easier to control than others, while certain alloys may require more deliberate cutting conditions to achieve a stable surface.

Apex’s CNC machining materials resource covers ferrous metals, non-ferrous metals, alloys and engineering plastics that can be considered for precision manufacturing. Material selection should still be based on the individual drawing and operating requirements rather than simply choosing from a list of available options.

Raw material form is also important.

A cylindrical part may logically begin with bar stock, while a large housing may be more effectively produced from a casting or forging before machining. The selected starting form influences how much material must be removed and which surfaces are available for initial workholding.

Material and process planning should therefore begin together.

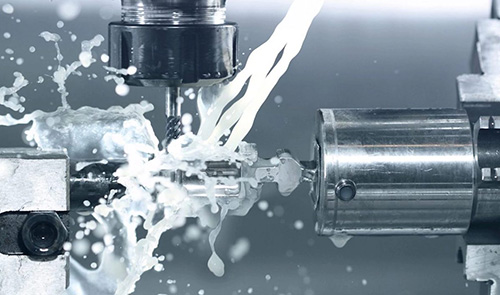

How CNC Milling Produces Machined Parts

CNC milling is commonly used for machined parts containing flat surfaces, pockets, slots, hole patterns, contours and features distributed across several faces.

During milling, a rotating cutting tool removes material as the machine controls the relationship between the cutter and workpiece. Different tools can be used for roughing, finishing, drilling, chamfering and other operations.

Three-axis machining is suitable for many conventional components where features can be reached from straightforward orientations. Additional controlled axes can expand tool access and allow more complex geometry to be machined with fewer manual repositioning operations.

This does not mean every complex component requires advanced multi-axis equipment.

Process selection should reflect the actual geometry. A well-designed component that can be produced reliably using a simpler setup may not benefit from unnecessary machining complexity.

Milling strategy should also separate rough material removal from final precision where appropriate.

Roughing typically removes most of the excess material while preserving enough stock for later finishing operations. Finishing then creates final dimensions and surface characteristics under more controlled cutting conditions.

This staged approach can be especially important when large amounts of material must be removed from machined parts. Removing everything directly to final size in one strategy may not provide the same dimensional stability as a planned roughing and finishing sequence.

How CNC Turning Produces Rotational Machined Parts

Turning is particularly effective when a component is organized around a rotational axis.

Shafts, bushings, sleeves, rollers, pins, couplings and many threaded components can be produced by rotating the workpiece while cutting tools remove material.

External turning creates cylindrical diameters and shoulders, while boring can establish internal dimensions. Facing creates end surfaces, grooving forms recessed features and threading produces internal or external threads.

One of the strengths of turning is the ability to machine several rotational features while they share a common spindle axis.

This can be useful when concentric relationships are important. If several diameters can be completed under the same workholding condition, the process may reduce the need to re-establish their relationship during later setups.

Long or slender components require additional attention because they can deflect under cutting forces. Support methods, machining sequence and cutting conditions may need to be adapted to maintain stability.

The same principle applies to thin-walled turned parts. Workholding must secure the workpiece without introducing excessive deformation.

Turning and milling should not be treated as competing processes. Many machined parts contain both rotational and prismatic features, so an effective manufacturing route may use both processes according to the geometry that each produces most naturally.

Designing Machined Parts Around Functional Requirements

Design for manufacturability begins by identifying the features that actually determine how the component functions.

A machined part may contain dozens of dimensions, but they do not necessarily have equal importance.

A bearing seat may control rotation. A mounting face may determine assembly position. A hole pattern may align another component. A sealing surface may require both dimensional control and an appropriate surface condition.

Other geometry may exist primarily for clearance, weight reduction or external form.

These differences should influence tolerance and machining decisions.

When every dimension is treated as equally critical, the manufacturing process becomes unnecessarily restrictive. More machining operations may require close control, additional inspection may be necessary and manufacturing flexibility can be reduced without improving the final product.

Functional datums are therefore an important part of machined-part design.

Datums define the references from which other important geometry is controlled. Ideally, they should correspond to the way the component locates or interacts within the final assembly.

A mounting surface that physically locates a component may be a more meaningful reference than an unrelated outside edge.

When design datums, machining references and inspection methods follow the same functional logic, communication between engineering and manufacturing becomes clearer.

Tolerances Should Protect Function Rather Than Chase Precision

A tolerance describes the amount of dimensional or geometric variation that can be accepted while the component still performs correctly.

It should not be interpreted as a competition to specify the smallest possible variation.

Tight tolerances can be essential on certain machined parts. Bearing fits, locating diameters, sealing interfaces and precision alignment features may depend on carefully controlled dimensions.

However, applying equivalent requirements to non-functional geometry provides little benefit.

Tolerance strategy should start by asking what happens if a dimension varies.

If variation affects fit, movement, alignment, sealing or load transfer, the dimension deserves close attention. If a modest change has no effect on component function, a highly restrictive tolerance may be unnecessary.

Tolerance relationships are also important.

A group of individually acceptable dimensions can still create assembly problems if their combined variation changes the relationship between critical features.

Geometric dimensioning and tolerancing can be useful for controlling characteristics such as position, flatness, perpendicularity and runout when those relationships matter more than isolated linear dimensions.

Good tolerance design makes the drawing more meaningful because it tells the manufacturer where precision actually creates functional value.

Internal Corners and Tool Access Affect Machined Part Design

Machining tools have physical dimensions that should be considered during design.

In milling, rotating tools naturally create radiused internal corners. A perfectly sharp internal corner cannot normally be produced directly by a conventional rotating end mill.

Specifying an unnecessarily small internal radius may require a smaller cutter. Smaller tools can have less rigidity and may require different cutting strategies.

When the internal corner does not perform a specific function, providing a larger practical radius gives the manufacturing engineer greater flexibility in tool selection.

Deep pockets present another tool-access challenge.

A cutter must extend far enough to reach the required surface without the holder contacting surrounding geometry. As tool extension increases, rigidity generally becomes more difficult to maintain.

Narrow deep cavities can therefore create a combination of access and stability problems.

The same principle applies to side holes, undercuts and internal features. Designers should consider not only whether the geometry exists in CAD but also from which direction a physical tool must reach it.

Small adjustments to feature location or access can sometimes simplify machining considerably without changing the function of the part.

Thin Walls and Slender Features Need Additional Process Control

Thin walls are frequently used in machined parts to reduce weight or create compact structures, but they can become less stable as material is removed.

During machining, cutting forces may push a thin wall away from the tool. When the force is removed, the material can move again. This behavior can influence wall thickness, flatness and surface finish.

The challenge becomes greater when the wall is tall, unsupported or surrounded by deep pockets.

Slender turned parts behave similarly. A long shaft can deflect during cutting even when the machine and cutting tool follow the correct programmed path.

These issues should not automatically lead designers to avoid thin geometry. Many applications genuinely require lightweight walls or slender features.

Instead, the manufacturing strategy should reflect the physical behavior of the part.

Material may be removed gradually, finishing passes may be separated from heavy roughing, workholding may be adapted or temporary support may be retained until later in the machining sequence.

The correct approach depends on geometry and material.

This is one reason DFM review is valuable before production. A small change in wall thickness, rib location or machining sequence can sometimes provide significantly greater process stability.

Workholding Is a Critical Part of Machined Part Accuracy

Machined parts need stable reference and clamping surfaces throughout production.

The first setup is usually straightforward because the manufacturer begins with relatively simple raw material. As machining progresses, however, those original surfaces may disappear.

A component that has no practical way to be held for later operations can become difficult to manufacture even when every individual feature is technically machinable.

Designers should therefore consider how the workpiece will be located at each major stage.

Clamping force is also important.

Too little restraint can allow the part to move under cutting forces. Excessive restraint can deform thin or flexible workpieces. The correct fixture should hold the part securely while preserving the geometry that matters.

Critical machined surfaces may also need protection from clamping damage.

This can influence operation sequence. In some cases, a non-critical surface should remain unfinished temporarily so it can serve as a locating feature before being machined during a later operation.

Workholding is therefore part of process engineering rather than simply a machine-operator decision.

Good fixturing connects the drawing, machining sequence and final dimensional requirements.

Reduce Unnecessary Setups in Machined Parts

Each time a workpiece is removed, repositioned and referenced again, another setup relationship is introduced.

Additional setups are not inherently bad. Complex parts often require several orientations to provide tool access.

The goal should instead be to avoid setups that provide no functional benefit.

Imagine a housing with most critical holes and pockets located on two accessible faces, while one minor feature is placed on a completely different side. If that feature can be relocated without affecting the assembly, the manufacturing route may become simpler.

This principle becomes particularly important when several features have close positional relationships.

Machining related features under the same reference condition can reduce the number of times their relationship must be re-established.

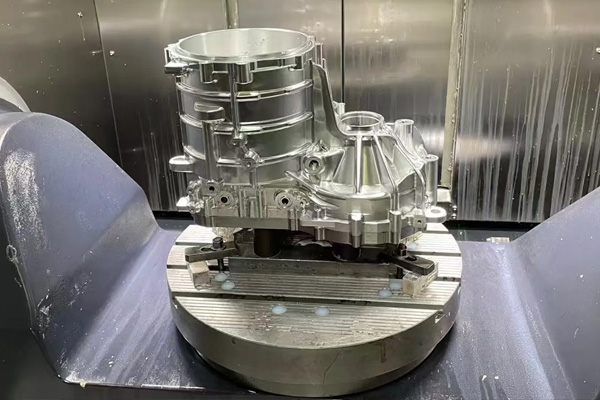

Multi-axis machining can also reduce repositioning for complex components by giving the cutting tool access to several sides of the part. Apex’s CNC machining services include milling, turning and multi-axis capabilities that can be combined according to component geometry.

The important principle is not to force every machined part into one setup. Instead, setup planning should protect functional relationships while avoiding unnecessary handling.

Surface Finish Is Different From Dimensional Accuracy

A machined surface can meet its dimensional requirement while still having an inappropriate surface texture.

Surface finish can influence sealing, sliding, bearing contact, appearance and other functional characteristics. It therefore needs to be specified separately from dimensional tolerance.

Cutting-tool geometry, cutting conditions, feed, machine stability and material behavior all influence the surface created during machining.

Not every surface needs the same finish.

A sealing interface may require closer attention than a clearance pocket. A bearing seat may have different requirements from an external surface that exists mainly for appearance.

Over-specifying finish across the entire part can add unnecessary manufacturing operations.

Secondary processes may also be required when the primary machining operation cannot efficiently produce the final requirement. Grinding, polishing or other finishing methods can be incorporated where their function justifies the additional step.

The manufacturing drawing should clearly distinguish between surfaces that require special treatment and those where the normal machined condition is sufficient.

Secondary Processing Can Be Part of the Machined Part Strategy

Machining is not always the final manufacturing stage.

Some parts require grinding after turning or milling to establish particular surfaces. Others may require deburring, heat treatment, coating or assembly depending on the design.

Cast and forged components can also pass through several stages before final machining.

These secondary processes should be considered before the machining route is finalized because they may alter dimensions or material condition.

For example, if a subsequent operation changes the surface or removes material, the CNC process may need to leave appropriate allowance.

Heat-related processing can also affect dimensional stability, making process sequence important for parts with demanding final geometry.

Deburring deserves similar attention.

Machining holes, slots and intersecting features can create edges that require controlled finishing. A design with difficult-to-access intersections may complicate deburring even if the machining operation itself is straightforward.

A mature manufacturing plan therefore looks beyond the machine cycle and considers the complete route required to create a finished part.

Quality Control Should Follow the Functional Drawing

Inspection should verify the characteristics that determine whether machined parts can perform their intended function.

Simple dimensions may be measured with standard calibrated instruments. More complex geometric relationships may require coordinate measurement or specialized methods.

The measurement method should be selected according to the requirement rather than using one tool for every characteristic.

Inspection timing matters as well.

Some features may be easier to measure during an intermediate machining stage before additional material removal restricts access.

In-process checks can also identify gradual changes caused by tool wear, fixture movement or other process variation before these changes affect more components.

Final inspection then verifies the completed dimensional relationships.

The table below summarizes several factors that influence the manufacturing quality of machined parts.

Manufacturing Factor	Main Concern	Practical Approach
Material selection	Cutting behavior and stability	Match material to function and machining requirements
Functional datums	Inconsistent reference strategy	Use assembly-related surfaces as meaningful references
Tolerances	Unnecessary manufacturing restrictions	Apply close control where function requires it
Internal radii	Tool size and rigidity	Use practical corner radii where possible
Deep pockets	Tool reach and vibration	Avoid unnecessary depth and restricted access
Thin walls	Workpiece deflection	Plan support and machining sequence
Workholding	Movement or deformation	Balance fixture stability and clamping force
Setup count	Re-established dimensional relationships	Group related features where practical
Surface finish	Functional surface performance	Specify finish according to actual application
Inspection	Undetected variation	Match measurement method to critical requirements

The best inspection plan is therefore connected to the drawing and machining strategy rather than being added only after production is complete.

Common Problems Found in Machined Parts

Dimensional variation is one of the most common manufacturing concerns, but its source is not always the CNC program.

Tool wear can gradually change dimensions. Workholding can shift. Thin components may deform. Temperature can affect the process, while incorrect reference or tool-offset information can introduce immediate errors.

Poor surface condition can also have several causes. A worn cutting edge, insufficient rigidity, vibration, chip interference or unsuitable machining parameters may all contribute.

Burr formation is another common issue, particularly around holes, slots and intersecting features.

Geometry errors can appear when features machined in different setups do not maintain their intended relationship. This is why datum selection and setup strategy matter so much for complex parts.

Rather than correcting these problems only at final inspection, manufacturers should investigate where variation enters the process.

If the same feature repeatedly fails in the same direction, this may indicate a systematic cause that should be addressed through tooling, workholding, program strategy or process sequence.

Quality improvement is most effective when inspection data is used to refine manufacturing rather than simply separating acceptable and unacceptable parts.

Prototype Machined Parts Provide Process Information

Prototype production is often treated mainly as a way to obtain the first physical component, but it also provides valuable manufacturing evidence.

The first machined parts can reveal tool-access difficulties that were not obvious in CAD. They can show whether a thin wall remains stable, whether the selected material produces the expected cutting behavior or whether an inspection feature is difficult to reach.

These observations can then be used to improve the production process.

A tolerance may be unnecessarily restrictive. A locating surface may need revision. A deep pocket may benefit from a different tool-access strategy.

For this reason, prototype feedback should not remain only with the machinist.

Relevant observations can be incorporated into the drawing, machining program, fixture design and inspection plan before larger production begins.

This converts prototype manufacturing from a simple part-making exercise into a process-development stage.

The objective is to ensure that successful results can be repeated without relying on continuous manual correction.

Moving From Prototype to Repeatable Production

Producing one acceptable machined part and producing the same geometry repeatedly are different challenges.

A prototype may receive additional attention from experienced operators. Adjustments can be made after individual measurements, and manufacturing decisions can be changed as the work progresses.

Repeat production requires greater process stability.

Raw material specifications should remain controlled. Fixtures must reproduce the same reference condition. Cutting tools need defined replacement or monitoring strategies. Programs and offsets should be managed consistently.

Inspection should also identify the dimensions most sensitive to process change.

This does not mean every dimension must be measured with equal frequency. Process control is more effective when attention is concentrated on characteristics that can reveal meaningful manufacturing variation.

Repeatability also depends on process documentation.

If a successful result exists only because one operator remembers a particular adjustment, the manufacturing system has not yet fully captured the process.

A mature machined-parts workflow converts practical experience into standardized manufacturing decisions that can be reproduced over time.

Machined Parts From Solid Stock vs Cast or Forged Blanks

Not all machined parts should begin from solid stock.

Machining directly from bar, plate or billet provides flexibility and is particularly useful where most of the final geometry is established through machining.

However, components with large volumes of material removed or complex near-net shapes may be candidates for castings or forgings before final machining.

A cast housing, for example, may already contain ribs, bosses and large cavities. CNC machining can then focus on functional interfaces such as bores, mounting faces and threaded holes.

A forged blank may provide another starting route when its material and geometry support the component requirements.

The selection should be based on the complete manufacturing problem.

Starting with a near-net blank introduces additional considerations such as dimensional variation, machining allowance and datum selection. Starting with solid stock may provide simpler initial workholding but require substantially more material removal.

The correct route depends on geometry, material, functional requirements and production strategy.

The key point is that machining should be used where it creates value rather than automatically removing every feature from a solid block.

How to Evaluate a Machined Parts Manufacturer

Manufacturing capability should be evaluated according to the needs of the component rather than the number of machines in a facility.

The first question is whether the manufacturer can interpret the drawing correctly.

A capable machining team should understand functional datums, tolerance relationships, surface requirements and how individual features interact within the final assembly.

Equipment should then match the geometry.

Turning capability is important for rotational components, while milling and multi-axis equipment are relevant for prismatic or complex parts. Grinding and secondary operations may also be necessary for certain surface or dimensional requirements.

Material experience matters because the same cutting strategy cannot simply be transferred between every alloy or engineering material.

Inspection capability should also correspond to the tolerances and geometric characteristics on the drawing.

Finally, engineering communication is an important part of manufacturability.

If a design contains an unnecessarily small internal radius, difficult tool access or a tolerance that conflicts with the functional purpose of the component, an experienced manufacturing team should be able to identify the issue before production.

The strongest supplier relationship is therefore not simply based on receiving a finished part. It involves technical feedback that supports a stable and repeatable manufacturing route.

Conclusion

Machined parts are the result of many engineering decisions working together.

CNC equipment provides the movement and repeatability required for modern precision manufacturing, but machine capability alone does not determine final quality. Material selection, functional design, tolerances, tool access, workholding, machining sequence, surface requirements and inspection all contribute to the finished component.

The most effective design strategy begins by identifying which features actually control function.

Precision should then be concentrated on those areas instead of applying unnecessarily restrictive requirements across every surface and dimension.

Manufacturing planning should consider how the component will be held, which operations establish its primary datums and whether critical features can be produced under stable reference conditions.

Inspection completes this process by verifying the characteristics that matter to assembly and performance.

When these decisions are considered together, machined parts become easier to manufacture consistently and easier to inspect reliably. The objective is not simply to create geometry that matches a CAD model once, but to establish a manufacturing process capable of reproducing the required function across repeated components.

FAQ
